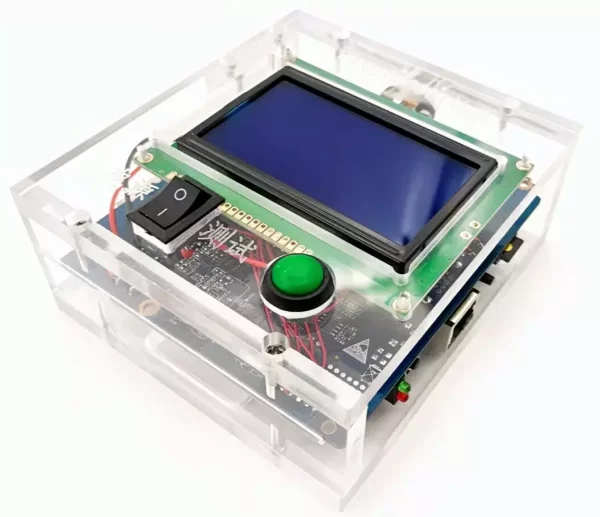

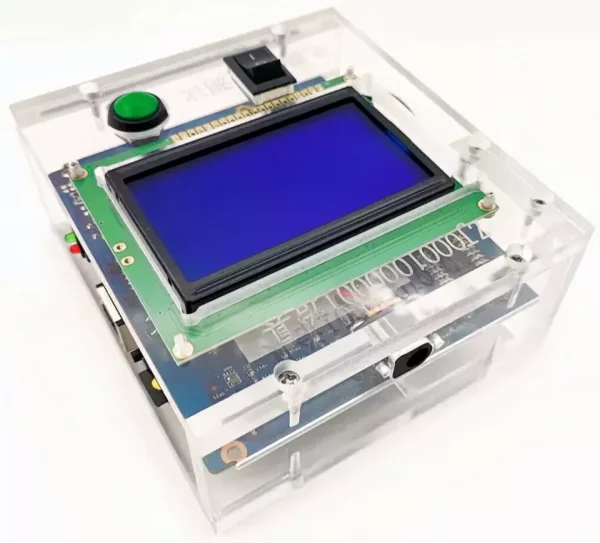

Universal Antminer Test Fixture - S9, T15, T17, S17, S19

Description

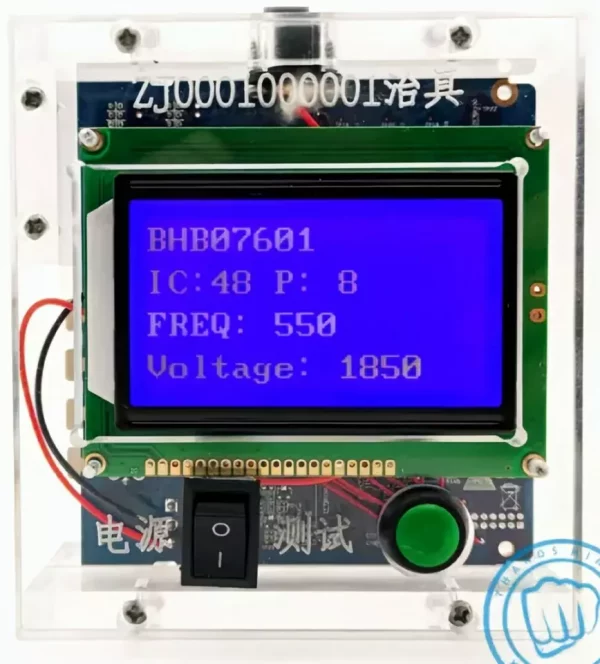

A universal Antminer test fixture that powers a hashboard on the bench and tells you which ASIC position has failed rather than leaving you to guess. Error codes come out over a serial link to a PC, which is the difference between a repair that takes twenty minutes and one that takes an afternoon. Stated coverage is T9, S9, T15, T17, S17 and S19 and other Bitcoin models.

Antminer test fixture interfaces — how it connects

DC 12 V input	For split-type miners (T9+, S9 series) you can power the fixture here without connecting the 6-pin PSU interface
PSU 6-pin connector	Required for all-in-one miners (S11, S15, T17, S17, S19, T19) — powers the fixture and carries the 4-pin voltage adjustment line
Data line IO interface	Connects to the hashboard. T9+ needs an 18-pin to 24-pin adapter
Serial connector	To a PC over USB-to-TTL to read the test log. Wiring is green (R), black (UART), white (T) — no red connection
Voltage regulation line	For adjusting supply voltage during testing

Do not connect the red wire

Worth repeating on its own because it is the mistake people make once: on the serial connection the red lead is not used. USB-to-TTL cables carry a 5 V line on red, and connecting it to a fixture that is already powered is a good way to damage something. Green, black and white only.

What a fixture does and does not tell you

A fixture identifies the failing position on the board. It does not tell you why that position failed — whether the ASIC itself is dead or the power domain feeding it has gone — and that distinction decides whether the repair is a chip swap or a hunt through the DC-DC stage. Chasing the wrong one is the single most common way an hour becomes a day. Once you have the position, a chip tester answers the second question directly for the chip families it covers.

The fixture also needs its test files, which live on a microSD card and are matched to the board you are testing — see the Antminer test fixture microSD card. Backup drivers and software are included with this fixture at no extra cost. Lifetime technical support is available as an add-on; ask us for the current terms — a previous version of this page quoted a figure that no longer matched what the store charges, so we have removed the number rather than leave a stale one on the page.

Warranty and shipping

This listing states a three-month warranty and 1–3 day shipping within the US. US shipping only. Those are the terms that apply. An earlier version of this page also carried a 6-month manufacturer’s warranty and a 7-working-day dispatch claim from a generic template, both of which contradicted the real terms above; they have been removed.

If you would rather buy the fixture as part of a complete bench, it is included in the 20-piece Antminer hashboard repair kit. Other fixtures and testers are in repair parts and tools, and if you are new to this the ASIC miner buying guide covers where repair sits in the economics.

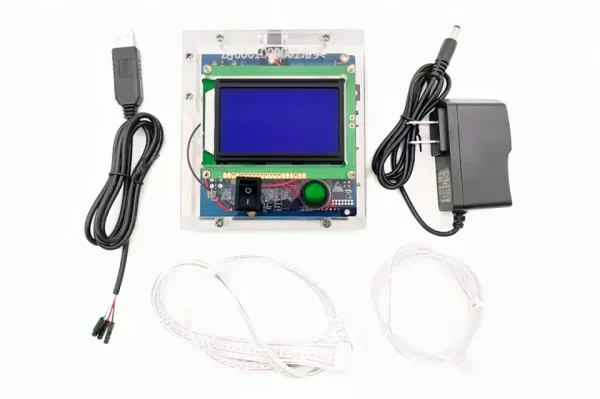

What’s in the box

1 × Universal Antminer Multifunctional Test Fixture S9 T15 S15 T17 S17 S19
Nothing that is not listed above. Cords, controllers, brackets and spares are only included when this listing names them — if you need to know before you pay, ask on +1 (781) 577-0377 or ns@ingmining.com and we will confirm in writing what is physically in the crate

Questions buyers ask about this part

Is this a complete, working machine?

No. This listing is on the parts and repair shelf, which holds both brand-new spares and bench tools and as-is units sold for repair. Which of those this one is, is stated in the description above — read it before you order, and ask us on +1 (781) 577-0377 or ns@ingmining.com if anything about compatibility with your fleet is unclear. We would rather answer the question than take a return.

What should I check the day it arrives?

Photograph the pallet or box before you open it, keep the packaging, and run the 48-hour acceptance test straight away. Freight claim windows are short, and a fault found on day two is a conversation while a fault found on day thirty is an argument. Our own six-step bench procedure is published in full, so you can repeat exactly what we did.

Shipping cost for this exact item, and how warranty and returns work here, are answered in the Shipping & buying tab on this page. Anything else, ask a person on +1 (781) 577-0377 or ns@ingmining.com — we would rather talk before you buy.

When a fixture pays for itself, and when it does not

On one machine it never pays. This fixture is $199.99 and it wants a test-file card at $59.99 to be useful, so call it $259.98 on the bench — the price of roughly four tested-working S19 95 TH/s hashboards at $59.99 each. If you own a single miner, buy the machine tested or buy a tested replacement board and skip the diagnosis entirely; you will spend less being wrong twice than you will spend being certain.

It starts earning the moment you are guessing. Of the machines that reach us described as having a dead hashboard, roughly half have a healthy board and a sick power supply, control board or ribbon cable — and the buyer has usually already paid for the board by then. Four wrong guesses at $59.99 is the fixture. One $159.99 used S19 written off because nobody could tell a dead chain from a dead controller is most of it again. That is the whole case, and it is a fleet case rather than a hobby one: the parts compatibility guide has the per-machine arithmetic and the EEPROM warning to read before you sweep a board, and used vs new ASIC miners sets out where diagnosis sits in the repair ladder.

Machine and parts prices read off our own shelf on 16 August 2026. Parts only — we publish no bench labour rate, so nothing here is a fitted price.

Related hardware and where this sits in the store

Parts, fixtures and tools that go with the same repair job:

Category: Need Parts.

Where this listing sits

This one is on the parts and repair shelf. That shelf holds two different things: brand-new spares and bench tools, and as-is units sold for repair. Which of the two this listing is, is stated in its own description — read it before you order.

What our grades mean

These are the only words we use, and each one means a specific thing. They are not interchangeable and we do not soften them to move stock.

New	Unused stock. Factory sealed unless the listing says otherwise — “new, open box” means exactly that, and the listing will say it.
Tested working	Second-hand, and it ran on our bench at the hashrate the listing states. We measured it; we are not repeating what the last owner told us. Expect cosmetic wear.
Refurbished	Tested working, plus work done: cleaned, thermal paste and fans dealt with, failed components replaced. The listing says what was actually done to that unit rather than using the word as decoration.
As-is / for parts	Sold with no working claim at all, at a price that reflects it. Buy these to repair or to harvest. If a listing says as-is, assume it does not hash until you have proved otherwise.
Untested	We have it, we have not powered it, and we are not going to pretend we did. Rarer than as-is and always stated explicitly.

What a grade here does not mean

Cosmetic wear is not a fault. Dust, scratches, scuffed labels and discoloured plastics are normal on hardware that has been earning. We photograph what we have; if the pictures matter to you, ask for more and we will take them.
A grade is not a warranty. Warranty terms are stated per listing, never per store — see the Shipping & buying tab. A tested-working grade describes what the machine did on our bench, not what we owe you in six months.
A boosted hashrate is not a spec. Where a unit ships on tuned firmware we say so and we give the factory figures too, because overclocking raises power faster than it raises hashrate — a tuned machine is less efficient per terahash than stock, not more.
We will not invent a grade to fill a field. If a unit came in without history and has not been through the bench, its listing says that.

How the grade gets decided

A used-hardware seller who will not tell you how they test is asking you to take the grade on trust. Ours is published: the six-step bench procedure every machine goes through, and the five measurements that get recorded — per-board hashrate, chip count, measured wall power rather than the nameplate figure, hardware error rate, and temperature under sustained load. When it reaches you, run the 48-hour acceptance test straight away, while the freight claim window is still open.

Buying second-hand for the first time? How to buy a used ASIC miner without getting burned is the long version, written from the repair bench rather than from a spec sheet.

Shipping

Shipping this item inside the United States costs $49.99 by UPS Ground — that is the rate the checkout will charge, read from the store’s own shipping settings, not an estimate. Orders ship within 7 business days.

Outside the United States the checkout quotes a flat international rate. On multi-unit or pallet orders, contact us before ordering so freight to your destination can be confirmed properly. What to check when the pallet arrives, and how a freight claim works, is covered in the mining hardware shipping guide.

What to do the day it arrives

Photograph the pallet or the box before you open it, and keep the packaging until you are satisfied. Freight claim windows are short, and damage found on day two is a conversation while damage found on day thirty is an argument.

Then run the 48-hour acceptance test straight away, while that window is still open. It is the same ground our own bench covers, so you can compare like for like: how the grade on this listing was arrived at, and the five measurements we record, are set out in the Condition & grading tab on this page.

Condition, warranty and returns

Condition: Repair part or bench tool — this shelf holds both new spares and as-is units, so read the condition stated in the description.

Warranty is stated per listing, not across the catalogue. Some units carry a manufacturer term and say so above, naming the term and the date it runs from. Many units, particularly used and AS-IS stock, carry none, and those listings do not claim one. There is no blanket warranty covering a catalogue that runs from sealed factory stock to a hashboard sold for parts. For what a mining warranty normally covers, see ASIC miner warranty explained.

Returns: ask for the terms on this unit before you pay. No single returns window is published for the whole store, because the sensible terms on a tested working machine and on a board sold AS-IS for parts are not the same terms. Email or call and ask what applies to this exact item — it is a two-minute conversation and a great deal cheaper than a dispute.
