BM1366 ASIC Chip Tester - Pass/Fail for S19 XP Silicon

Description

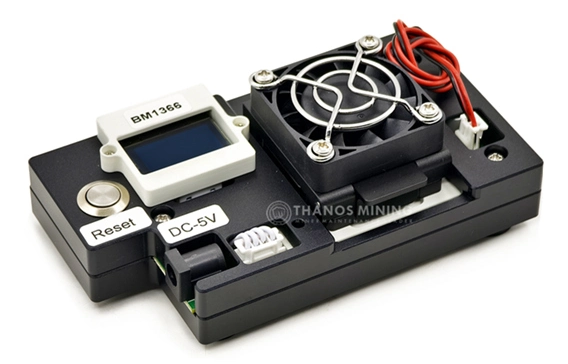

A BM1366 chip tester: a socketed bench fixture that gives you a straight PASS or ERROR on a single Bitmain BM1366-series ASIC. It covers the BM1366AL, BM1366AG, BM1366BS, BM1366BP and BM1366AH variants — the chips used on Antminer S19 XP, S19 XP Hydro and S19k Pro hashboards. The unit has an OLED readout labelled BM1366, a 40 mm cooling fan for the socket, a reset button and a DC 5 V input.

BM1366 chip tester — what it covers

Chips covered	BM1366AL, BM1366AG, BM1366BS, BM1366BP and BM1366AH
Boards those chips are on	Antminer S19 XP, S19 XP Hydro and S19k Pro hashboards
Does not cover	BM1368AA, the S21 / T21 generation chip — a different part despite the one-digit gap in the number. Check the chip marking on your board before ordering
What it reports	PASS or ERROR. A functional go/no-go and nothing more — it is not a binning tool and will not tell you a chip’s efficiency or its voltage behaviour
Readout	OLED, labelled BM1366
Socket cooling	40 mm fan
Power input	DC 5 V. Vendors specify an adjustable supply set to 5 V with plenty of current headroom — an ordinary small wall wart is not the right feed
Getting the chip off	Bottom heat, hot plate at around 300 °C, then into the socket with pin 1 aligned. Observe normal ESD precautions; you are handling bare BGAs
Condition and warranty	Not stated in this listing, so nothing here claims either. Ask before you buy and we will tell you what we actually have — new sealed, opened, bench-tested or untested — and put any coverage in writing

The two moments a BM1366 chip tester pays for itself

One: you are stuck on the same fault. You have found the domain, reworked it, powered up, and the board reports the same failure. At that point the question is no longer where is the fault, it is is this chip actually dead — and you cannot answer that in circuit. Pull it, socket it, press test. A definite answer ends the loop instead of committing you to another hour of rework on a hypothesis.

Two, and this is the bigger one: you have just bought chips. BM1366s are sold loose in trays as new stock and as tested pulls, and the quality is genuinely variable no matter what the seller says. An S19 XP hashboard carries around 110 of them. Soldering an unknown-quality chip onto a board is how a straightforward repair turns into a second repair — and if you are working through a tray, testing them first tells you your yield before you have committed any labour. That is also the leverage you need to go back to whoever sold you the tray while the claim window is still open.

How it is used, and what it needs

The chip comes off the board with bottom heat — a hot plate, around 300 °C — then goes into the socket with pin 1 aligned, and the test button starts the run. Power is 5 V DC; vendors specify an adjustable supply set to 5 V with plenty of current headroom, so an ordinary small wall wart is not the right feed. Observe normal ESD precautions; you are handling bare BGAs.

What it does not tell you

PASS / ERROR is a functional go/no-go and nothing more. It is not a binning tool. It will not tell you a chip’s efficiency, its voltage behaviour, or whether it will still be good after 18 months in a hot shed — so a tray that tests 100% PASS is a tray of chips that work, not a tray of well-binned chips. Treat it as the floor, not the ceiling.

Fitment — the mistake we would rather you did not make

This fixture is BM1366 only. The BM1368AA used on the S21 and T21 generation is a different chip and this tester does not cover it, despite the one-digit gap in the part number. Check the chip marking on your board before ordering. The natural companions here are as-is boards to work on — we generally have an S19 XP Pro hashboard sold as-is and a tested-working S19 Pro hashboard — plus a board-level fixture such as the K3L tester to find the bad domain in the first place, and the full hashboard repair tool kit for the rework itself. All of it lives in repair parts and tools.

Condition and warranty

This listing does not state a condition grade or a warranty term, so we are not going to imply one. Before you buy, ask us and we will tell you what we actually have — new sealed, opened, bench-tested, or untested — and put any coverage in writing. Ask us about this unit.

What’s in the box

1 × BM1366 Series ASIC Chip Tester BM1366AI AG BP BS Bitcoin
Nothing that is not listed above. Cords, controllers, brackets and spares are only included when this listing names them — if you need to know before you pay, ask on +1 (781) 577-0377 or ns@ingmining.com and we will confirm in writing what is physically in the crate

Questions buyers ask about this part

Is this a complete, working machine?

No. This listing is on the parts and repair shelf, which holds both brand-new spares and bench tools and as-is units sold for repair. Which of those this one is, is stated in the description above — read it before you order, and ask us on +1 (781) 577-0377 or ns@ingmining.com if anything about compatibility with your fleet is unclear. We would rather answer the question than take a return.

What should I check the day it arrives?

Photograph the pallet or box before you open it, keep the packaging, and run the 48-hour acceptance test straight away. Freight claim windows are short, and a fault found on day two is a conversation while a fault found on day thirty is an argument. Our own six-step bench procedure is published in full, so you can repeat exactly what we did.

Shipping cost for this exact item, and how warranty and returns work here, are answered in the Shipping & buying tab on this page. Anything else, ask a person on +1 (781) 577-0377 or ns@ingmining.com — we would rather talk before you buy.
