Antminer B8 Hashboard Tester - English Version Fixture

Description

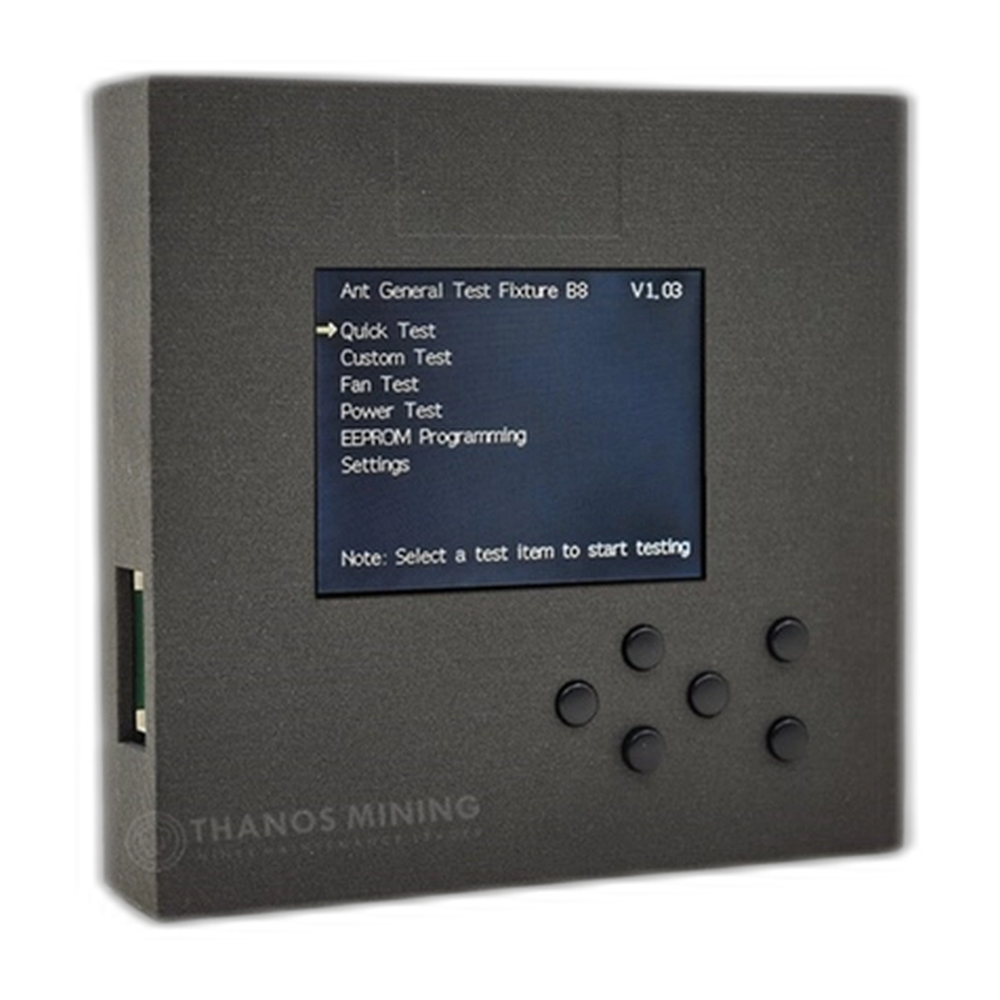

The Antminer B8 hashboard tester is a general-purpose Antminer test fixture that combines five bench jobs in one handheld unit. Its menu, shown on the colour LCD, reads Ant General Test Fixture B8 and offers Quick Test, Custom Test, Fan Test, Power Test, EEPROM Programming and Settings. It runs from a USB Type-C input — including off a power bank, which is what makes it a field tool rather than a bench-only one — with a separate 12 V barrel input used for fan testing.

What the Antminer B8 hashboard tester covers

Hashboards	19 series, 21 series, 17 series, L3 / L5 / L7 / L9, S9 / S11 / S15 — the vendor describes the list as continuously updated by firmware
Power supplies	APW17-1215, APW12-1215, APW12-1417, APW11-1721, APW9, APW8
Fans	DC 12 V 4-wire
Operating temperature	LM75A full-address sensor scan
EEPROM	Read and write
Power in	USB Type-C (power-bank capable); 12 V barrel jack for fan tests
In the box	Main unit, 18-pin data cable, 4-pin data cable

What’s in the box

1 × Antminer B8 Hashboard Tester EEPROM Fan PSU Test Tool English Version
Nothing that is not listed above. Cords, controllers, brackets and spares are only included when this listing names them — if you need to know before you pay, ask on +1 (781) 577-0377 or ns@ingmining.com and we will confirm in writing what is physically in the crate

The EEPROM function is the reason to buy this specific tool

Here is the part that catches people out, and it is worth the price of the unit on its own. Every hashboard in one miner has to carry matching EEPROM data or the control board will not accept the set and the machine will not start. That is fine until you sweep a board on a test fixture — because a meaningful minority of boards, commonly put at around one in ten, come off a fixture sweep with their EEPROM contents cleared. At that point the board may be electrically perfect and still refuse to run, and if you did not read the data off first you are now hunting for a donor board with matching contents.

So the workflow that saves you is: read and save the EEPROM before you sweep, not after. Having the read/write function on the same box that does the sweep is what makes that habit realistic instead of an extra step you skip when it is late. If you have already lost a board’s data, that is the problem the universal hashboard tester with EEPROM editing exists to solve too.

Honest limits

The supported-model list is a firmware property, not a hardware one. The listing photograph shows V1.03, and the vendor’s own model list carries an “to be continuously updated” caveat, which means the coverage you get is the coverage that version shipped with. If you are buying this for one specific board family — and especially for anything newer than the 21 series — tell us the model first and we will check the firmware version on the actual unit rather than let you find out afterwards. A general-purpose fixture is also not a substitute for a board-specific one: it will tell you a board is bad and roughly where, and a dedicated fixture plus a fault log will tell you which chip.

The rest of the bench

For deeper per-chip diagnosis we stock the K3L multi-function tester, the Whatsminer M20 / M30 test fixture and the IceRiver KS series fixture. For power supplies specifically, the APW12 PSU tester is the faster tool. Everything bench-side is in repair parts and tools; the machines are on the miner list.

Condition and warranty

This listing does not state a condition grade or a warranty term, so we are not going to imply one. Before you buy, ask us and we will tell you what we actually have — new sealed, opened, bench-tested, or untested — and put any coverage in writing. Ask us about this unit.

Questions buyers ask about this part

Is this a complete, working machine?

No. This listing is on the parts and repair shelf, which holds both brand-new spares and bench tools and as-is units sold for repair. Which of those this one is, is stated in the description above — read it before you order, and ask us on +1 (781) 577-0377 or ns@ingmining.com if anything about compatibility with your fleet is unclear. We would rather answer the question than take a return.

What should I check the day it arrives?

Photograph the pallet or box before you open it, keep the packaging, and run the 48-hour acceptance test straight away. Freight claim windows are short, and a fault found on day two is a conversation while a fault found on day thirty is an argument. Our own six-step bench procedure is published in full, so you can repeat exactly what we did.

Shipping cost for this exact item, and how warranty and returns work here, are answered in the Shipping & buying tab on this page. Anything else, ask a person on +1 (781) 577-0377 or ns@ingmining.com — we would rather talk before you buy.

Related hardware and where this sits in the store

Parts, fixtures and tools that go with the same repair job:

Category: Need Parts.

Five bench jobs in one handheld unit, and the EEPROM function is the reason to own it. The parts guide explains the one-in-ten EEPROM wipe that catches people mid-sweep, and how to pick a fixture against your actual bench.

Where this listing sits

This one is on the parts and repair shelf. That shelf holds two different things: brand-new spares and bench tools, and as-is units sold for repair. Which of the two this listing is, is stated in its own description — read it before you order.

What our grades mean

These are the only words we use, and each one means a specific thing. They are not interchangeable and we do not soften them to move stock.

New	Unused stock. Factory sealed unless the listing says otherwise — “new, open box” means exactly that, and the listing will say it.
Tested working	Second-hand, and it ran on our bench at the hashrate the listing states. We measured it; we are not repeating what the last owner told us. Expect cosmetic wear.
Refurbished	Tested working, plus work done: cleaned, thermal paste and fans dealt with, failed components replaced. The listing says what was actually done to that unit rather than using the word as decoration.
As-is / for parts	Sold with no working claim at all, at a price that reflects it. Buy these to repair or to harvest. If a listing says as-is, assume it does not hash until you have proved otherwise.
Untested	We have it, we have not powered it, and we are not going to pretend we did. Rarer than as-is and always stated explicitly.

What a grade here does not mean

Cosmetic wear is not a fault. Dust, scratches, scuffed labels and discoloured plastics are normal on hardware that has been earning. We photograph what we have; if the pictures matter to you, ask for more and we will take them.
A grade is not a warranty. Warranty terms are stated per listing, never per store — see the Shipping & buying tab. A tested-working grade describes what the machine did on our bench, not what we owe you in six months.
A boosted hashrate is not a spec. Where a unit ships on tuned firmware we say so and we give the factory figures too, because overclocking raises power faster than it raises hashrate — a tuned machine is less efficient per terahash than stock, not more.
We will not invent a grade to fill a field. If a unit came in without history and has not been through the bench, its listing says that.

How the grade gets decided

A used-hardware seller who will not tell you how they test is asking you to take the grade on trust. Ours is published: the six-step bench procedure every machine goes through, and the five measurements that get recorded — per-board hashrate, chip count, measured wall power rather than the nameplate figure, hardware error rate, and temperature under sustained load. When it reaches you, run the 48-hour acceptance test straight away, while the freight claim window is still open.

Buying second-hand for the first time? How to buy a used ASIC miner without getting burned is the long version, written from the repair bench rather than from a spec sheet.

Shipping

Shipping this item inside the United States costs $49.99 by UPS Ground — that is the rate the checkout will charge, read from the store’s own shipping settings, not an estimate. Orders ship within 7 business days.

Outside the United States the checkout quotes a flat international rate. On multi-unit or pallet orders, contact us before ordering so freight to your destination can be confirmed properly. What to check when the pallet arrives, and how a freight claim works, is covered in the mining hardware shipping guide.

What to do the day it arrives

Photograph the pallet or the box before you open it, and keep the packaging until you are satisfied. Freight claim windows are short, and damage found on day two is a conversation while damage found on day thirty is an argument.

Then run the 48-hour acceptance test straight away, while that window is still open. It is the same ground our own bench covers, so you can compare like for like: how the grade on this listing was arrived at, and the five measurements we record, are set out in the Condition & grading tab on this page.

Condition, warranty and returns

Condition: Repair part or bench tool — this shelf holds both new spares and as-is units, so read the condition stated in the description.

Warranty is stated per listing, not across the catalogue. Some units carry a manufacturer term and say so above, naming the term and the date it runs from. Many units, particularly used and AS-IS stock, carry none, and those listings do not claim one. There is no blanket warranty covering a catalogue that runs from sealed factory stock to a hashboard sold for parts. For what a mining warranty normally covers, see ASIC miner warranty explained.

Returns: ask for the terms on this unit before you pay. No single returns window is published for the whole store, because the sensible terms on a tested working machine and on a board sold AS-IS for parts are not the same terms. Email or call and ask what applies to this exact item — it is a two-minute conversation and a great deal cheaper than a dispute.
