Antminer S19 / S20 / S21 Dual Fan Assembly with Backplate

Description

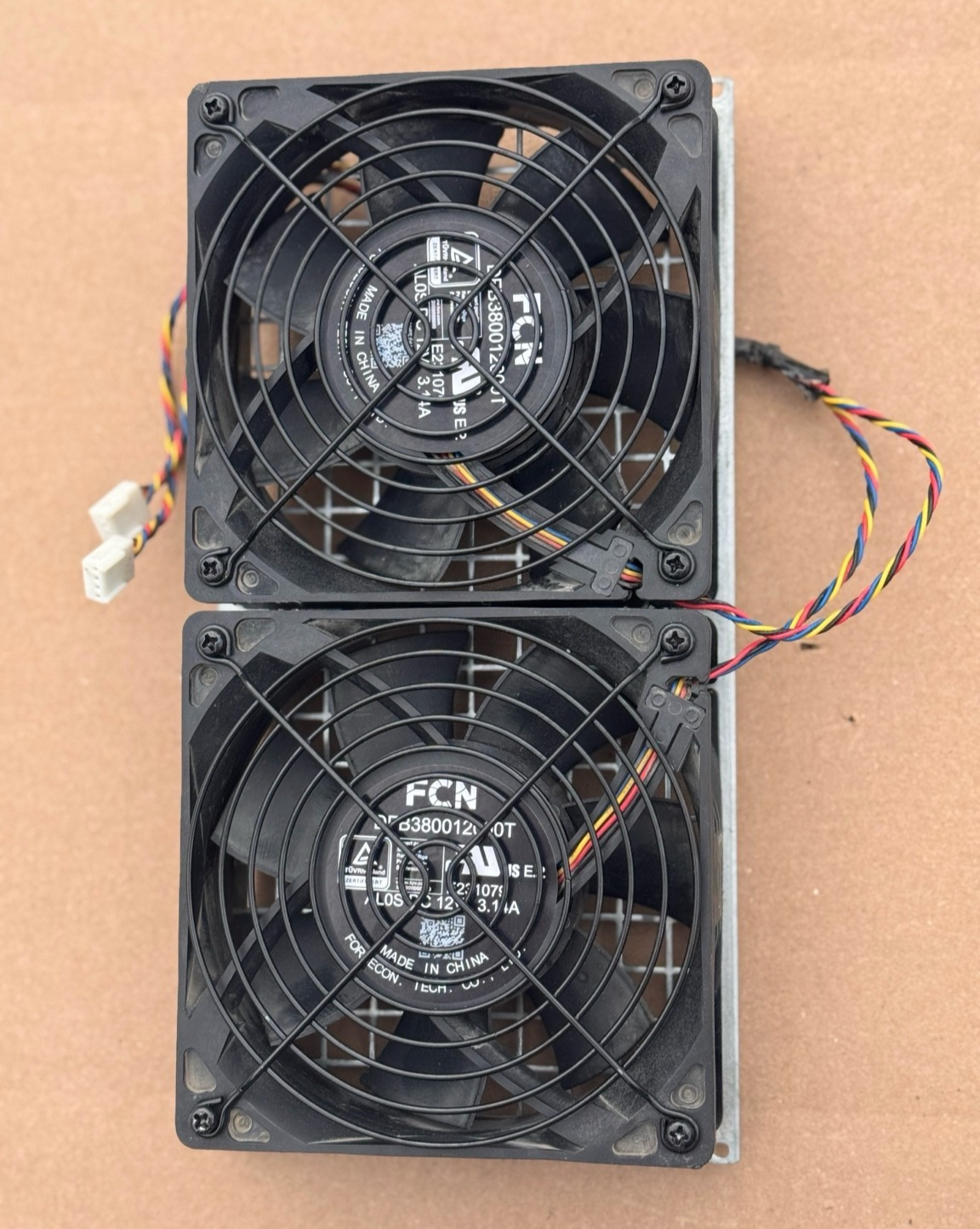

A dual 120 mm fan assembly with mounting backplate for Bitmain Antminer S19, S20 and S21 series machines. Fans are the single most common failure on an air-cooled Antminer — they are the only moving parts in the box, they run at six thousand-plus RPM in a dusty environment, and when one dies the miner throttles or shuts down within minutes. Buying the assembly rather than a loose fan means you get the backplate and hardware, so the swap is a bolt-in instead of a scavenging exercise.

Fitment and specifications

Fan size	120 × 120 × 38 mm (the standard Antminer “12038” format)
Connector	4-pin, PWM speed control
Supply voltage	12 V DC
Assembly	Two fans plus mounting backplate
Listed compatibility	Antminer S19 series, S20 series, S21 series

The fitment trap worth knowing about

All of these fans share the same 120 × 120 × 38 mm footprint and the same 4-pin PWM connector, but they are not all the same motor. S19-series machines typically ship a 12 V fan in the region of 2.7 A, while later S21 and T21 builds use a noticeably higher-current 12 V fan. Physically interchangeable, electrically not equivalent — fit an underrated fan to a machine that expects more airflow and you will chase thermal throttling you cannot explain.

Tell us your exact model and we will confirm the current rating on this assembly matches it before we ship. We would rather answer one message than take a return.

Fitting notes from doing this a lot

Replace fans in pairs. A new fan next to a worn one gives you uneven airflow and the machine will still throttle.
Check fan orientation before you close the case — intake and exhaust are not interchangeable, and a backwards fan will cook a hashboard quietly.
Blow the heatsinks out while the case is open. Most “dead fan” calls we get are actually a dust-blocked heatsink and a fan that gave up trying.
If the miner still reports a fan error after the swap, suspect the control board fan header before you suspect the new fans.

Condition

Condition grade and warranty on this part are not stated in the listing. Ask us and we will confirm both before you order — we do not describe used parts as new.

Before you order

We repair this hardware in-house, so if you are not sure the part fits, send us the model and the silkscreen part number off your board and we will check it against stock. More spares and test gear in repair parts & tools, or browse all miners.

Questions buyers ask about this part

Is this a complete, working machine?

No. This listing is on the parts and repair shelf, which holds both brand-new spares and bench tools and as-is units sold for repair. Which of those this one is, is stated in the description above — read it before you order, and ask us on +1 (781) 577-0377 or ns@ingmining.com if anything about compatibility with your fleet is unclear. We would rather answer the question than take a return.

What should I check the day it arrives?

Photograph the pallet or box before you open it, keep the packaging, and run the 48-hour acceptance test straight away. Freight claim windows are short, and a fault found on day two is a conversation while a fault found on day thirty is an argument. Our own six-step bench procedure is published in full, so you can repeat exactly what we did.

Shipping cost for this exact item, and how warranty and returns work here, are answered in the Shipping & buying tab on this page. Anything else, ask a person on +1 (781) 577-0377 or ns@ingmining.com — we would rather talk before you buy.

Related hardware and where this sits in the store

Parts, fixtures and tools that go with the same repair job:

Category: Need Parts.

Worn fans throttle a miner and are routinely misdiagnosed as a failed hashboard. Our used-miner buying guide ranks what actually takes these machines down, and fans sit near the top precisely because they are cheap and easy to miss.

Same 120 × 120 × 38 mm footprint across the S19, S20 and S21 — and not the same motor. The parts compatibility guide explains the current-rating trap that leaves you chasing thermal throttling with no fault reported.

Where this listing sits

This one is on the parts and repair shelf. That shelf holds two different things: brand-new spares and bench tools, and as-is units sold for repair. Which of the two this listing is, is stated in its own description — read it before you order.

What our grades mean

These are the only words we use, and each one means a specific thing. They are not interchangeable and we do not soften them to move stock.

New	Unused stock. Factory sealed unless the listing says otherwise — “new, open box” means exactly that, and the listing will say it.
Tested working	Second-hand, and it ran on our bench at the hashrate the listing states. We measured it; we are not repeating what the last owner told us. Expect cosmetic wear.
Refurbished	Tested working, plus work done: cleaned, thermal paste and fans dealt with, failed components replaced. The listing says what was actually done to that unit rather than using the word as decoration.
As-is / for parts	Sold with no working claim at all, at a price that reflects it. Buy these to repair or to harvest. If a listing says as-is, assume it does not hash until you have proved otherwise.
Untested	We have it, we have not powered it, and we are not going to pretend we did. Rarer than as-is and always stated explicitly.

What a grade here does not mean

Cosmetic wear is not a fault. Dust, scratches, scuffed labels and discoloured plastics are normal on hardware that has been earning. We photograph what we have; if the pictures matter to you, ask for more and we will take them.
A grade is not a warranty. Warranty terms are stated per listing, never per store — see the Shipping & buying tab. A tested-working grade describes what the machine did on our bench, not what we owe you in six months.
A boosted hashrate is not a spec. Where a unit ships on tuned firmware we say so and we give the factory figures too, because overclocking raises power faster than it raises hashrate — a tuned machine is less efficient per terahash than stock, not more.
We will not invent a grade to fill a field. If a unit came in without history and has not been through the bench, its listing says that.

How the grade gets decided

A used-hardware seller who will not tell you how they test is asking you to take the grade on trust. Ours is published: the six-step bench procedure every machine goes through, and the five measurements that get recorded — per-board hashrate, chip count, measured wall power rather than the nameplate figure, hardware error rate, and temperature under sustained load. When it reaches you, run the 48-hour acceptance test straight away, while the freight claim window is still open.

Buying second-hand for the first time? How to buy a used ASIC miner without getting burned is the long version, written from the repair bench rather than from a spec sheet.

Shipping

Shipping this item inside the United States costs $49.99 by UPS Ground — that is the rate the checkout will charge, read from the store’s own shipping settings, not an estimate. Orders ship within 7 business days.

Outside the United States the checkout quotes a flat international rate. On multi-unit or pallet orders, contact us before ordering so freight to your destination can be confirmed properly. What to check when the pallet arrives, and how a freight claim works, is covered in the mining hardware shipping guide.

What to do the day it arrives

Photograph the pallet or the box before you open it, and keep the packaging until you are satisfied. Freight claim windows are short, and damage found on day two is a conversation while damage found on day thirty is an argument.

Then run the 48-hour acceptance test straight away, while that window is still open. It is the same ground our own bench covers, so you can compare like for like: how the grade on this listing was arrived at, and the five measurements we record, are set out in the Condition & grading tab on this page.

Condition, warranty and returns

Condition: Repair part or bench tool — this shelf holds both new spares and as-is units, so read the condition stated in the description.

Warranty is stated per listing, not across the catalogue. Some units carry a manufacturer term and say so above, naming the term and the date it runs from. Many units, particularly used and AS-IS stock, carry none, and those listings do not claim one. There is no blanket warranty covering a catalogue that runs from sealed factory stock to a hashboard sold for parts. For what a mining warranty normally covers, see ASIC miner warranty explained.

Returns: ask for the terms on this unit before you pay. No single returns window is published for the whole store, because the sensible terms on a tested working machine and on a board sold AS-IS for parts are not the same terms. Email or call and ask what applies to this exact item — it is a two-minute conversation and a great deal cheaper than a dispute.

Who you are buying from

ING Mining LLC, Hanson, Massachusetts. ING MINING® is a registered U.S. trademark; our marketplace feedback is on the reviews page and the longer version of who we are is on about. Reach a person on +1 (781) 577-0377 or ns@ingmining.com.
